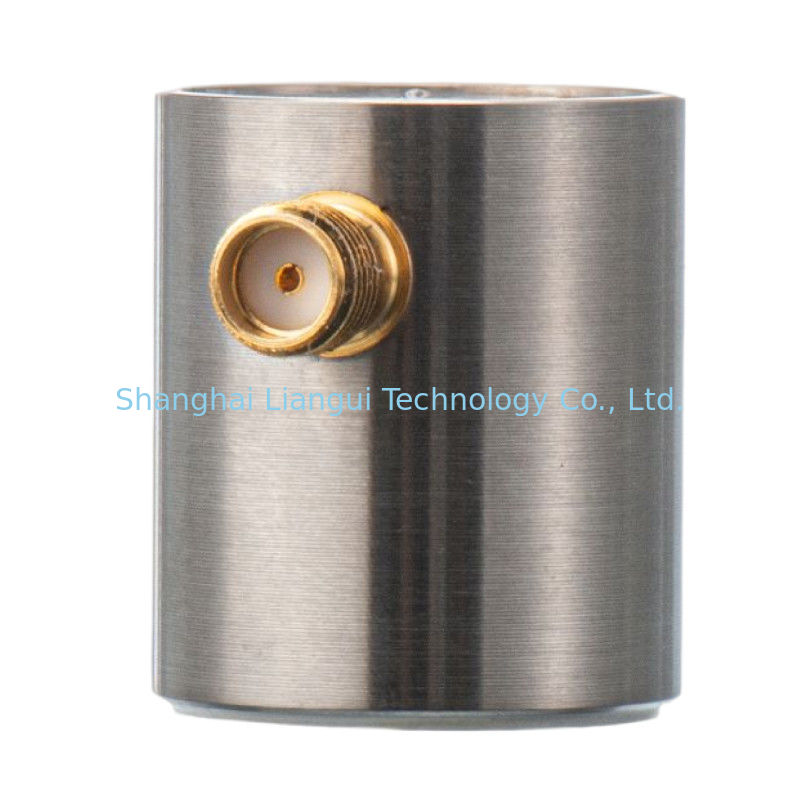

Wideband Acoustic Emission Sensor Built-In Preamplifier Transducer SMA Connector

Name: Wideband Acoustic Emission Sensor Built-In Preamplifier Transducer SMA Connector
Brand: Shanghai Liangui Technology Co., Ltd.
SKU: WI500
Price: 200 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	QingCheng Ltd.
Certification:	CE
Model Number:	WI500

Detail Information

Place of Origin:

China

Brand Name:

QingCheng Ltd.

Certification:

Model Number:

WI500

Resonant Frequency:

500KHz

Frequency Range:

100KHz~1000KHz

Sensitive Peak:

>65dB

Using Temperature:

-20-50℃

Case Material:

SUS-304

Face Material:

Ceramic

Protection Grade:

IP62

Connector Type:

SMA

Connector Position:

Side

Highlight:

High Light

Highlight:

Wideband Acoustic Emission Sensor

Preamplifier Transducer Acoustic Emission Sensor

SMA Connector Acoustic Emission Transducer

Trading Information

Minimum Order Quantity:

1 Piece

Price:

USD200

Packaging Details:

Carton box

Delivery Time:

1-7 days

Payment Terms:

T/T

Supply Ability:

50 pieces per month

Product Description

Technical Specs
Resonant Freq. Ref V/(m/s)	500kHz
Frequency Range	100kHz-1000kHz
Sensitivity Peak Ref V/(m/s)	>65dB
Integral preamplifier	40dB 28V
Preamp. Impedance	50Ω
Working Temp.	-20 to 50℃
Size(DxH)	22×25.5mm
Weight	33 g
Case Material	SUS-304
Face Material	Ceramic
Protecting Grade	IP62
Connector	SMA
Connector Location	Side
Accessories
Hold-down	Saddle type
Signal cable model	RG178/RG316
