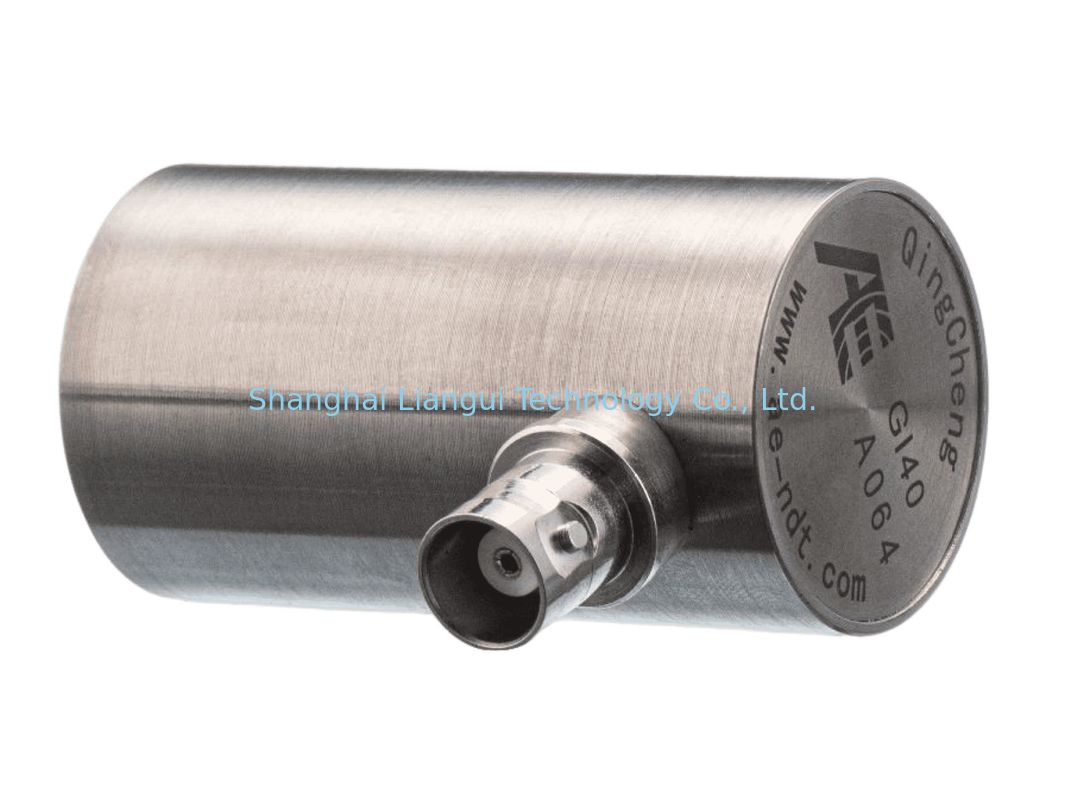

GI40 Acoustic Emission Sensor Integral Preamplifier Sensor
| Place of Origin | CHINA |
|---|---|
| Brand Name | QingCheng AE |
| Certification | CE、CQM |
| Model Number | GI40 Integral Preamplifier Sensor |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Packaging Details | Packaging Details Selling Units:Single item Single package size: 19X9X6 cm Single gross weight:0.850 kg Package Type:Carton Box Port Shanghai |
| Delivery Time | 10 work days |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resonant Frequency | 40KHz | Frequency Range | 15KHz~70KHz |
|---|---|---|---|
| Sensitivity Peak | >75dB | Built-in Preamplifier | 40dB28V |
| Using Temperateure | -20~50℃ | Size Mm | Φ30×57 |
| Net Weight | 193g | ||
| High Light | GI40 Acoustic Emission Sensor,Dustproof Acoustic Emission Sensor,40khz Acoustic Emission Testing Equipment |
||
Product Description
Applications
GI40 is a passive piezoelectric acoustic emission sensor with integrated preamplifier, it does not need to be connected
to the additional preamplifier, thus simplifying the wiring work. The low frequency response makes it suited for
monitoring large objects like concrete, steel structures and geologic structures. It also could be used for monitoring
leakage and corrosion of storage tanks or valves and for detecting partial discharge.
| Technical Specs | |
| Resonant Freq. Ref V/(m/s) | 40kHz |
| Frequency Range | 15kHz-70kHz |
| Sensitivity Peak Ref V/(m/s) | >75dB |
| Integral preamplifier | 40dB28V |
| Preamp. Impedance | 50Ω |
| Working Temp. | -20 to 50℃ |
| Size(DxH) | 30×57mm |
| Weight | 193 g |
| Case Material | SUS-304 |
| Face Material | Ceramic |
| Protecting Grade | IP62 |
| Connector | BNC |
| Connector Location | Side |
| Accessories | |
| Signal cable model | RG178/RG316 |
| Hold-down | M36A |
- Company information
Shanghai Liangui Technology Co., Ltd. is committed to promoting the prosperity and development of the world through technology, focusing on Intelligent Equipment & Automation Solutions to to help enterprises to improve production process and minimize the cost.
We are an intelligent equipment & automation solution integration service provider. Our company has a professional foreign trade sales team and an experienced technical support team, the principles of our team work is customer first and fast solution. Our business scope includes NDT Testing Equipment, Acoustic Emission Testing Instruments, Industrial Robot, Mechanical and Electrical Equipment etc.
Our NDT testing division is specialized in the R & D, production, sales and technical application services of Acoustic Emission Testing Instruments, Ultrasonic Flaw Detector, Ultrasonic Thickness Gauge and other Testing Instruments. Our R&D team has the ability to develop Sensors, Electronic Measurement Software and Hardware, we can also customize Non-standard Automated and Robotic Inspection Equipment for customers. Our products mainly used in Industrial Field (Aerospace, Railway, Automotive, Oil & Gas, Manufacturing, Process Industry ) and Power Generation (Renewable, Nuclear, New Reactors, Advanced Reactors, Research Reactors, Gas Combined, Coal, Cogeneration).
Our objective is to always help our clients meet their high safety standards, proposing efficient inspection solutions based on global services which reduce costs and increase process efficiency, make industrial facilities and power generation to operate safely, efficiently and excellently. Our major products AE system and instruments have been sold to China, USA, UK, Brazil, Indonesia and so on, which win the trust and support of customers from all over the world with an excellent reputation.
- FAQ
Q1: What is the price term?
A1: FOB Shanghai /Guangzhou/ Shenzhen
Q2: What are your payment terms?
A2: T/T Bank Transfer, Alibaba Trade Assurance and so on. Normally 50% deposit with PO, 50% balance before shipment.
Q3: How about your specific warranty service?
A3: All our products are provided with a one-year warranty period, after-sales calls are on duty 24 hours a day, and immediate response during work
Q4: Are you a trading company or a factory ?
A4: We are a group company with 5 factories in Shanghai, Jiangsu and Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are an intelligent equipment & automation solution integration service provider.
Q5: Are you checking all your goods before delivery?
A5: Yes,every component of the instruments must be checked strictly before they leave the factory.
If you have any other questions please feel free to contact us.
