Applications

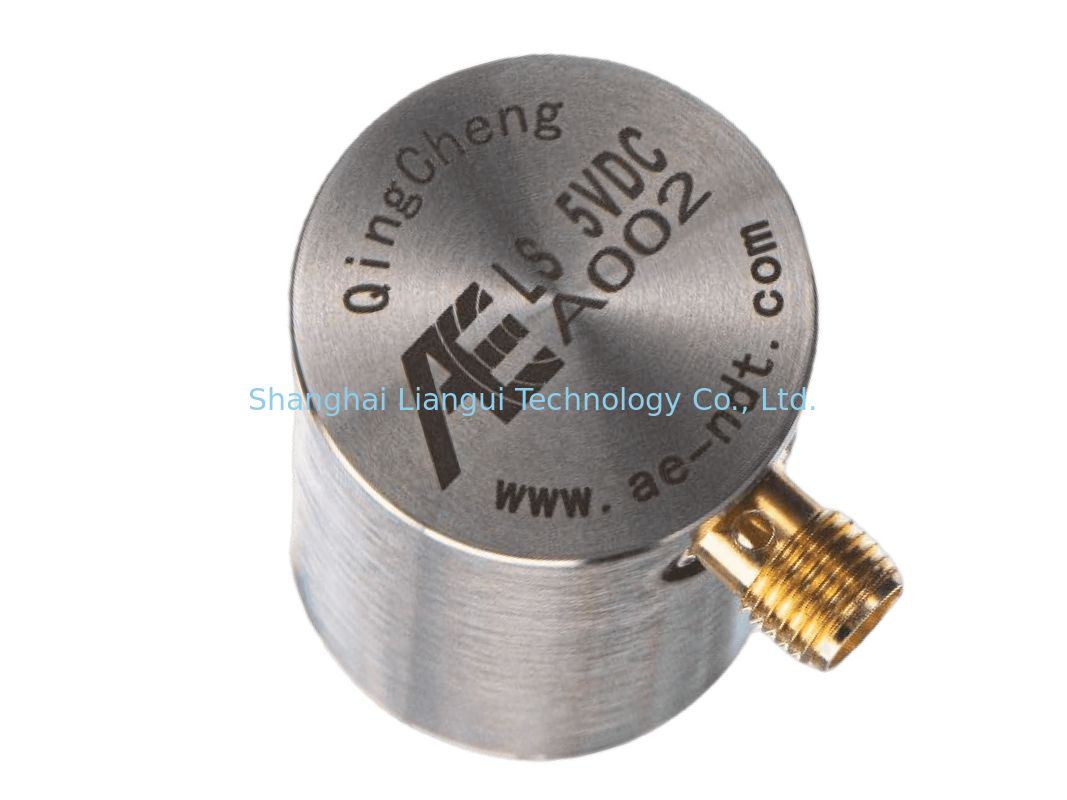

The LS 5VDC is well suited for detecting leakege and corrosion in harsh environment that requires intrinsic safety
and for structures health monitoring such as pipelines, vessels, bridges etc.
| Technical Specs |
| Resonant Freq. Ref V/(m/s) |
35kHz |
| Frequency Range |
15kHz-70kHz |
| Sensitivity Peak Ref V/(m/s) |
>65dB |
| Integral preamplifier |
26dB 5V |
| Preamp. Impedance |
50Ω |
| Working Temp. |
-20 to 50℃ |
| Size(DxH) |
22×42.6mm |
| Weight |
54 g |
| Case Material |
SUS-304 |
| Face Material |
Ceramic |
| Protecting Grade |
IP62 |
| Connector |
SMA |
| Connector Location |
Side |
| Accessories |
| Signal cable model |
RG178/RG316 |
| Hold-down |
M36 |
Further Information
Sensor Data Sheet
Shanghai Liangui Technology Co., Ltd. is committed to promoting the prosperity and development of the world through technology, focusing on Intelligent Equipment & Automation Solutions to to help enterprises to improve production process and minimize the cost.
We are an intelligent equipment & automation solution integration service provider. Our company has a professional foreign trade sales team and an experienced technical support team, the principles of our team work is customer first and fast solution. Our business scope includes NDT Testing Equipment, Acoustic Emission Testing Instruments, Industrial Robot, Mechanical and Electrical Equipment etc.
Our NDT testing division is specialized in the R & D, production, sales and technical application services of Acoustic Emission Testing Instruments, Ultrasonic Flaw Detector, Ultrasonic Thickness Gauge and other Testing Instruments. Our R&D team has the ability to develop Sensors, Electronic Measurement Software and Hardware, we can also customize Non-standard Automated and Robotic Inspection Equipment for customers. Our products mainly used in Industrial Field (Aerospace, Railway, Automotive, Oil & Gas, Manufacturing, Process Industry ) and Power Generation (Renewable, Nuclear, New Reactors, Advanced Reactors, Research Reactors, Gas Combined, Coal, Cogeneration).
Our objective is to always help our clients meet their high safety standards, proposing efficient inspection solutions based on global services which reduce costs and increase process efficiency, make industrial facilities and power generation to operate safely, efficiently and excellently. Our major products AE system and instruments have been sold to China, USA, UK, Brazil, Indonesia and so on, which win the trust and support of customers from all over the world with an excellent reputation.
According to ISO12714 (ASTM E1781, GB/T19801), use the standard sensor calibrated by the Institute of Metrology
The sensor is a reference sensor. The acoustic emission calibration system developed by Company is used for secondary calibration. The calibration system is composed of test bench, acquisition instrument, and test software, and the calibration method uses surface wave sound field calibration.
We are the only one NDT instruments R&D and manufacturer in China.
1.What is the price term?
FOB Guangzhou.
2.What’s the warranty time?
12 months after shipment date
3.What’s the delivery date?
10-30 days after receiving the T/T payment.
4.How to deal with the faulty part if exceeds the warranty time?
Customer can return the faulty parts for our testing and maintaining, all the logistic fee should be at customer’s cost.
