Applications

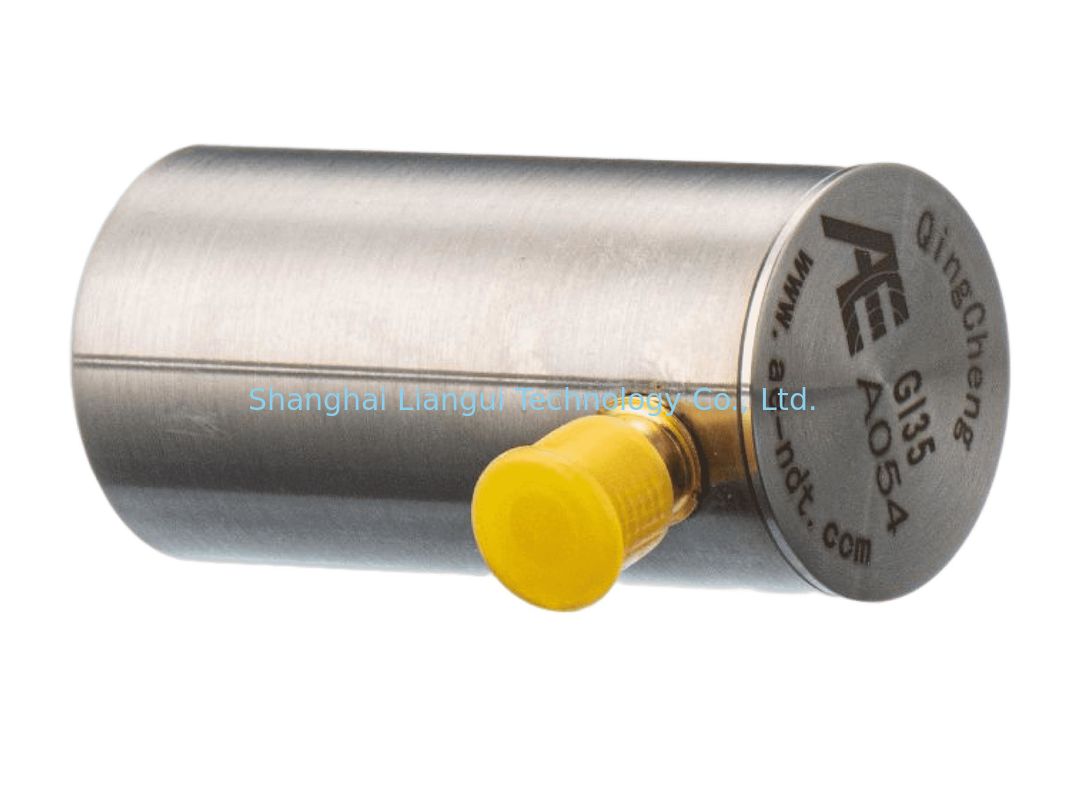

GI35 is a passive piezoelectric acoustic emission sensor with integrated preamplifier, it does not need to be connected
to the additional preamplifier, thus simplifying the wiring work. The low frequency response makes it suited for
monitoring large objects like concrete, steel structures and geologic structures. It also could be used for monitoring
leakage and corrosion of storage tanks or valves and for detecting partial discharge.
| Technical Specs |
| Resonant Freq. Ref V/(m/s) |
40kHz |
| Frequency Range |
15kHz-70kHz |
| Sensitivity Peak Ref V/(m/s) |
>75dB |
| Integral preamplifier |
40dB28V |
| Preamp. Impedance |
50Ω |
| Working Temp. |
-20 to 50℃ |
| Size(DxH) |
22×42.6mm |
| Weight |
79 g |
| Case Material |
SUS-304 |
| Face Material |
Ceramic |
| Protecting Grade |
IP62 |
| Connector |
SMA |
| Connector Location |
Side |
| Accessories |
| Signal cable model |
RG178/RG316 |
| Hold-down |
Saddle type |
Shanghai Liangui Technology Co., Ltd. is committed to promoting the prosperity and development of the world through technology, focusing on Intelligent Equipment & Automation Solutions to to help enterprises to improve production process and minimize the cost.
We are an intelligent equipment & automation solution integration service provider. Our company has a professional foreign trade sales team and an experienced technical support team, the principles of our team work is customer first and fast solution. Our business scope includes NDT Testing Equipment, Acoustic Emission Testing Instruments, Industrial Robot, Mechanical and Electrical Equipment etc.
Our NDT testing division is specialized in the R & D, production, sales and technical application services of Acoustic Emission Testing Instruments, Ultrasonic Flaw Detector, Ultrasonic Thickness Gauge and other Testing Instruments. Our R&D team has the ability to develop Sensors, Electronic Measurement Software and Hardware, we can also customize Non-standard Automated and Robotic Inspection Equipment for customers. Our products mainly used in Industrial Field (Aerospace, Railway, Automotive, Oil & Gas, Manufacturing, Process Industry ) and Power Generation (Renewable, Nuclear, New Reactors, Advanced Reactors, Research Reactors, Gas Combined, Coal, Cogeneration).
Our objective is to always help our clients meet their high safety standards, proposing efficient inspection solutions based on global services which reduce costs and increase process efficiency, make industrial facilities and power generation to operate safely, efficiently and excellently. Our major products AE system and instruments have been sold to China, USA, UK, Brazil, Indonesia and so on, which win the trust and support of customers from all over the world with an excellent reputation.
1.What is the trade type of your company?
Manufacture and trading.
2.What is your delivery time?
10-30 days according to different order quantity.
3.What is your warranty time?
One year after delivery date.
4.Whether OEM/ODM is avaliable?
Yes.
