Acoustic Emission System
>

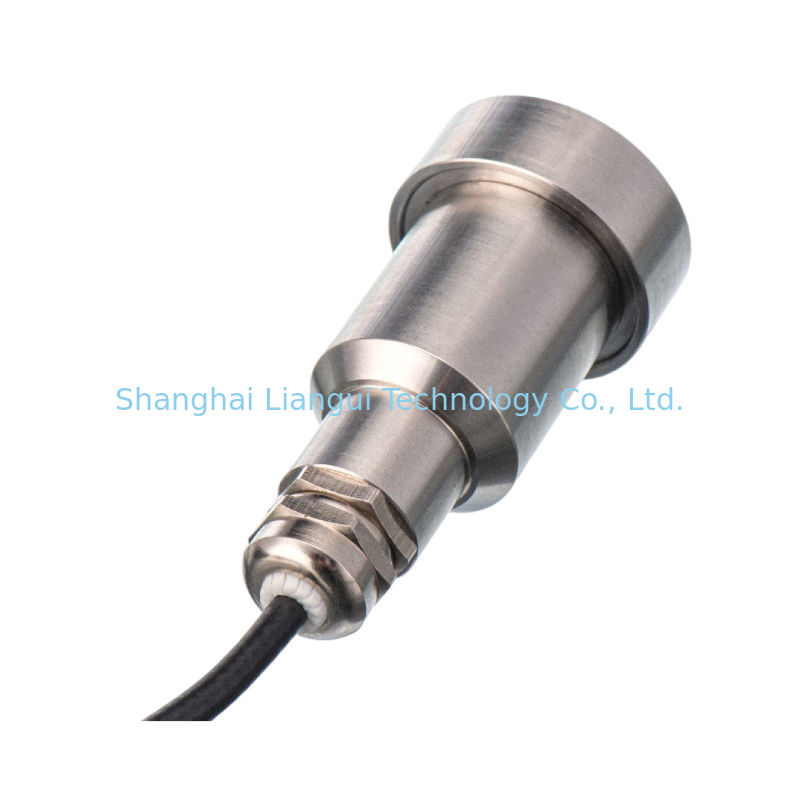

Ultra Low Frequency Response Acoustic Emission Sensor Built-In Preamplifier
Ultra Low Frequency Response Acoustic Emission Sensor Built-In Preamplifier
  • Ultra Low Frequency Response Acoustic Emission Sensor Built-In Preamplifier
  • Ultra Low Frequency Response Acoustic Emission Sensor Built-In Preamplifier
  • Ultra Low Frequency Response Acoustic Emission Sensor Built-In Preamplifier
  • Ultra Low Frequency Response Acoustic Emission Sensor Built-In Preamplifier
  • Ultra Low Frequency Response Acoustic Emission Sensor Built-In Preamplifier
  • Ultra Low Frequency Response Acoustic Emission Sensor Built-In Preamplifier

Ultra Low Frequency Response Acoustic Emission Sensor Built-In Preamplifier

Product Details:
Place of Origin: China
Brand Name: QingCheng Ltd.
Certification: CE
Model Number: GI10
Detail Information
Place of Origin:
China
Brand Name:
QingCheng Ltd.
Certification:
CE
Model Number:
GI10
Preamplifier:
26dB 5V
Frequency Range:
1Hz-15kHz
Sensitivity Peak:
>80dB
Working Temperature:
-20~50℃
Size (DxH):
38.5*85mm
Case Material:
SUS-304
Face Material:
SUS-304
Protection Grade:
IP68
Connector Type:
BNC
Highlight:

High Light

Highlight:

Acoustic Emission Sensor Built-In Preamplifier

,

SUS304 AE Sensor

,

150kHz Acoustic Emission Transducer

Trading Information
Minimum Order Quantity:
1 Piece
Price:
USD200
Packaging Details:
Carton box
Delivery Time:
1-7 days
Payment Terms:
T/T
Supply Ability:
50 pieces per month
Product Description

1Hz-15KHz Acoustic Emission Sensor Built in Preamplifier

Product Description


Applications

GI10 is a passive piezoelectric acoustic emission sensor with integrated preamplifier, it does not need to be connected to the additional preamplifier, thus simplifying the wiring work. This sensor could be used underground for monitoring geologic structures like slope and for detecting buried pipelines. It also could be used for monitoring leakage and corrosion of the bottom of storage tanks or valves.

Technical Specs
Frequency Range 1Hz-15kHz
Sensitivity Peak Ref V/(m/s) >80dB
Integral preamplifier 26dB 5V
Preamp. Impedance 50Ω
Working Temp. -20 to 50℃
Size(DxH) 38.5×85mm
Weight 720 g
Case Material SUS-304
Face Material SUS-304
Protecting Grade IP68
Connector BNC on integral cable
Connector Location Top
Accessories
Signal cable model SYV-50-3/STYV-50-2
Hold-down Self-magnetic





Ultra Low Frequency Response Acoustic Emission Sensor Built-In Preamplifier 0



Ultra Low Frequency Response Acoustic Emission Sensor Built-In Preamplifier 1Ultra Low Frequency Response Acoustic Emission Sensor Built-In Preamplifier 2Ultra Low Frequency Response Acoustic Emission Sensor Built-In Preamplifier 3Ultra Low Frequency Response Acoustic Emission Sensor Built-In Preamplifier 4






Company Information

Ultra Low Frequency Response Acoustic Emission Sensor Built-In Preamplifier 5Ultra Low Frequency Response Acoustic Emission Sensor Built-In Preamplifier 6

Advantages



Ultra Low Frequency Response Acoustic Emission Sensor Built-In Preamplifier 7
Packaging & Shipping

Ultra Low Frequency Response Acoustic Emission Sensor Built-In Preamplifier 8

FAQ



1.What is the price term?
FOB Guangzhou.


2.What’s the warranty time?
12 months after shipment date


3.What’s the delivery date?
30-45 days after receiving the T/T payment.


4.How to deal with the faulty part if exceeds the warranty time?
Customer can return the faulty parts for our testing and maintaining, all the logistic cost and maintaining fee should be at customer’s cost.
