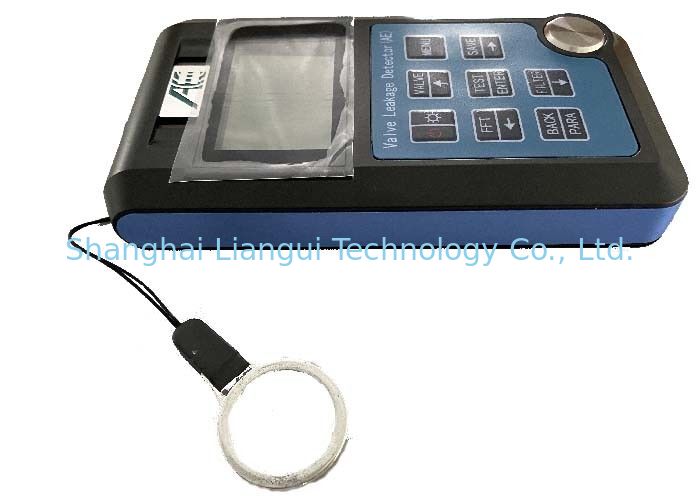

Handheld Valve Leak Detector 500KHz 200KHz 100KHz

Place of Origin GUANGDONG
Brand Name AE
Certification CE,CQM
Model Number SVDL1
Minimum Order Quantity 1 set
Price 500 USD
Packaging Details 1 pcs/plastic handheld bag ,carton for outside packing
Delivery Time 15 work days
Payment Terms T/T
Supply Ability 35 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name SVDL1 Valve Leakage Detector Sampling Frequency Optional 4MHz/2MHz/1MHz/500KHz/200KHz/ 100KHz/50KHz/20KHz
Product Name Acoustic Emission Valve Leakage Detector Response Frequency 1kHz-1MHz (±1.5dB)
Protection Level Host IP64 Storage 50000 Sets Of Test Data
Working Temperature -10℃-50℃ Generate Parameters RMS,ASL,P
High Light

Handheld Valve Leak Detector

,

200KHz leak detection equipment

,

Valve Leak Detector 500KHz

Leave a Message
Product Description

Handheld Valve Leakage Detector Of Sampling Frequency Optional

  • Product description

Powered by 2 AA dry batteries, the battery life is up to 100h in normal use, and the battery is easy to replace, suitable for long-term field operations, small in size, light in weight, and easy to carry;
Buzzer alarm and flashing alarm are optional, the first-level alarm limit and the second-level alarm limit can be set, and the alarm data is automatically stored;
Data storage: with storage shortcut keys, one-click data storage, time and date synchronization tracking record, data storage capacity can reach 50,000 groups;



Model Number SVLD1
Sampling frequency optional 4MHz/2MHz/1MHz/500KHz/200KHz/ 100KHz/50KHz/20KHz
Response frequency 1kHz-1MHz (±1.5dB)
Protection level host Host:IP64,Sensor:IP66
Channel quantity 1
Working humidity 20%~90%RH
Built-in preamplifier 26dB (Sensor)
Analog filter Six kinds of filters can choose(1MHz-1MHz,1MHz-600MHz,20KHz-1MHz,20KHz-600KHz,100KHz-1MHz,100KHz-600KHz)
power supply 3VDC(Two AA alkaline batteries)
Display screen 128*64 dot matrix LCD
Dimensions 136(L)*72(W)*20(H)mm
Weight 176g(With battery)
Number of valves 200



  • Company Introduction

Shanghai Liangui Technology Co., Ltd. is committed to promoting the prosperity and development of the world through technology, focusing on Intelligent Equipment & Automation Solutions to to help enterprises to improve production process and minimize the cost.



We are an intelligent equipment & automation solution integration service provider. Our company has a professional foreign trade sales team and an experienced technical support team, the principles of our team work is customer first and fast solution. Our business scope includes NDT Testing Equipment, Acoustic Emission Testing Instruments, Industrial Robot, Mechanical and Electrical Equipment etc.



Our NDT testing division is specialized in the R & D, production, sales and technical application services of Acoustic Emission Testing Instruments, Ultrasonic Flaw Detector, Ultrasonic Thickness Gauge and other Testing Instruments. Our R&D team has the ability to develop Sensors, Electronic Measurement Software and Hardware, we can also customize Non-standard Automated and Robotic Inspection Equipment for customers. Our products mainly used in Industrial Field (Aerospace, Railway, Automotive, Oil & Gas, Manufacturing, Process Industry ) and Power Generation (Renewable, Nuclear, New Reactors, Advanced Reactors, Research Reactors, Gas Combined, Coal, Cogeneration).



Our objective is to always help our clients meet their high safety standards, proposing efficient inspection solutions based on global services which reduce costs and increase process efficiency, make industrial facilities and power generation to operate safely, efficiently and excellently. Our major products AE system and instruments have been sold to China, USA, UK, Brazil, Indonesia and so on, which win the trust and support of customers from all over the world with an excellent reputation.

Handheld Valve Leak Detector 500KHz 200KHz 100KHz 0

  • Certifications

Handheld Valve Leak Detector 500KHz 200KHz 100KHz 1Handheld Valve Leak Detector 500KHz 200KHz 100KHz 2



  • FAQ

Q:What is the price term?
A:FOB Shanghai /Guangzhou/ Shenzhen



Q:How to deal with the faulty part if exceeds the warranty time?
A:Customer can return the faulty parts for our testing and maintaining, all the logistic fee should be at customer’s cost.



Q: What is your terms of payment ?

A: T/T Bank Transfer, Alibaba Trade Assurance and so on. Normally 50% deposit with PO, 50% balance before shipment.



Q: Are you a trading company or the manufacturer?

A: We are a group company with 5 factories in Shanghai, Jiangsu and Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are an intelligent equipment & automation solution integration service provider.



If you have another question, please feel free to contact us.
