SVLD1 Handheld Acoustic Emission Detector Valve Leakage Detector
| Place of Origin | GUANGDONG |
|---|---|
| Brand Name | AE |
| Certification | CE,CQM |
| Model Number | SVDL1 |
| Minimum Order Quantity | 1 set |
| Price | 500 USD |
| Packaging Details | 1 pcs/plastic handheld bag ,carton for outside packing |
| Delivery Time | 5-20 work days |
| Payment Terms | T/T |
| Supply Ability | 30 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | SVDL1 Valve Leakage Detector | Sampling Frequency Optional | 4MHz/2MHz/1MHz/500KHz/200KHz/ 100KHz/50KHz/20KHz |
|---|---|---|---|
| Sampling Precision | 16bit | Display Screen | 128*64 Dot Matrix LCD |
| Protection Level Host | IP64 | Working Humidity | 20%~90%RH |
| Built-in Preamplifier | 26dB (Sensor) | Power Supply | 3VDC(Two AA Alkaline Batteries) |
| High Light | Handheld acoustic emission detector,SVLD1 handheld detector,16bit acoustic emission detector |
||
Product Description

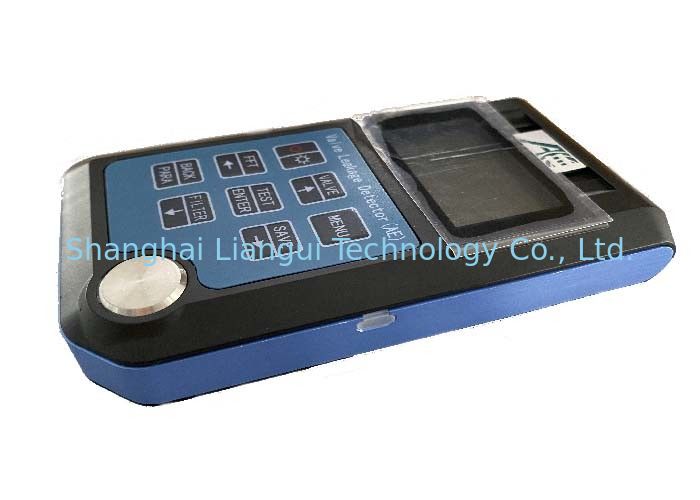

SVLD1 Handheld Acoustic Emission Valve Leakage Detector
- Product description
Applying the principle of acoustic emission technology to simplify the operation process, the instrument is simple to operate, with multiple shortcut keys, which can complete the leak detection with one key;
With storage shortcut keys, one-click data storage, time and date synchronization tracking record, data storage capacity can reach 50,000 groups;
6 kinds of analog filters are optional to filter out noise signals according to the test situation;
| Model Number | SVLD1 |
| Sampling frequency optional | 4MHz/2MHz/1MHz/500KHz/200KHz/ 100KHz/50KHz/20KHz |
| Sampling precision | 16bit |
| Response frequency | 1kHz-1MHz (±1.5dB) |
| Protection level host | Host:IP64,Sensor:IP66 |
| Channel quantity | 1 |
| Working temperature | -10℃-50℃ |
| Built-in preamplifier | 26dB (Sensor) |
| Analog filter | Six kinds of filters can choose(1MHz-1MHz,1MHz-600MHz,20KHz-1MHz,20KHz-600KHz,100KHz-1MHz,100KHz-600KHz) |
| power supply | 3VDC(Two AA alkaline batteries) |
| Dimensions | 136(L)*72(W)*20(H)mm |
| Weight | 176g(With battery) |
| storage | 50000 sets of test data |
| Number of valves | 200 |
| Generate parameters | RMS,ASL,P |
-
Company Introduction
Shanghai Liangui Technology Co., Ltd. is committed to promoting the prosperity and development of the world through technology, focusing on Intelligent Equipment & Automation Solutions to to help enterprises to improve production process and minimize the cost.
We are an intelligent equipment & automation solution integration service provider. Our company has a professional foreign trade sales team and an experienced technical support team, the principles of our team work is customer first and fast solution. Our business scope includes NDT Testing Equipment, Acoustic Emission Testing Instruments, Industrial Robot, Mechanical and Electrical Equipment etc.
Our NDT testing division is specialized in the R & D, production, sales and technical application services of Acoustic Emission Testing Instruments, Ultrasonic Flaw Detector, Ultrasonic Thickness Gauge and other Testing Instruments. Our R&D team has the ability to develop Sensors, Electronic Measurement Software and Hardware, we can also customize Non-standard Automated and Robotic Inspection Equipment for customers. Our products mainly used in Industrial Field (Aerospace, Railway, Automotive, Oil & Gas, Manufacturing, Process Industry ) and Power Generation (Renewable, Nuclear, New Reactors, Advanced Reactors, Research Reactors, Gas Combined, Coal, Cogeneration).
Our objective is to always help our clients meet their high safety standards, proposing efficient inspection solutions based on global services which reduce costs and increase process efficiency, make industrial facilities and power generation to operate safely, efficiently and excellently. Our major products AE system and instruments have been sold to China, USA, UK, Brazil, Indonesia and so on, which win the trust and support of customers from all over the world with an excellent reputation.
