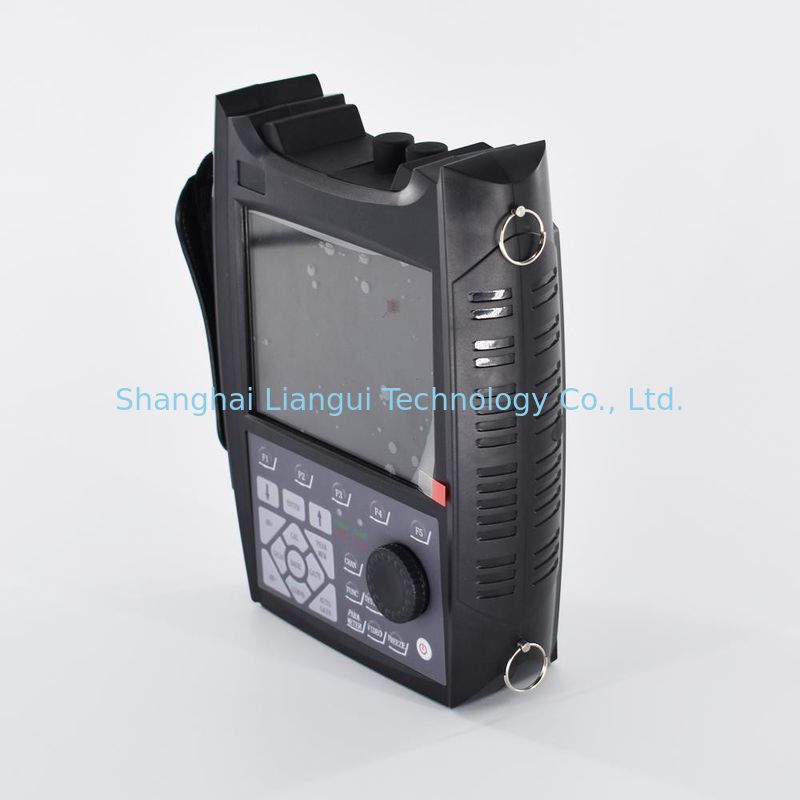

SUB140 Portable Digital Ultrasonic Flaw Detector High Accuracy 110dB

SUB140 Portable Digital Ultrasonic Flaw Detector High Accuracy 110dB

Product Details:
Place of Origin: Guangdong
Brand Name: AE
Certification: CE、CQM
Model Number: SUB140
Detail Information
Place of Origin:
Guangdong
Brand Name:
AE
Certification:
CE、CQM
Model Number:
SUB140
Name:
SUB140 Digital Ultrasonic Flaw Detector
Sound Velocity:
1000m/s~9999m/s
Gain Coverage:
0dB-110dB
Sampling Rate:
100MHz
Probe Zero -offset:
0μs-99.99μs
Warranty:
1 Year
Surplus Sensitivity:
>63dB
Highlight:

High Light

Highlight:

Portable Ultrasonic Crack Detection

,

110db Ultrasonic Flaw Detection Equipment

,

Digital Ultrasonic Flaw Detector Machine

Trading Information
Minimum Order Quantity:
1Piece
Packaging Details:
Carton-box
Delivery Time:
10 days
Payment Terms:
T/T
Supply Ability:
30 Piece/pieces per month
Product Description

SUB140 High accuracy ultrasonic flaw detector Portable Digital Ultrasonic Flaw Detector

Detailed introduction



Key technical indicators
Item Indicator Item Indicator
Testing scope 0~9999mm linear inhibition 0~80%(digital suppression)
Working frequency 0.2MHz~15MHz Vertical linear error ≤3%
Sound velocity 1000m/s~9999m/s Horizontal linear error ≤0.1%
Gain Coverage 0dB~110dB Dynamic Scope ≥32dB
Sampling rate 100MHz Battery 6*3.7V(lithium battery)
Display delay -20μs~+3400μs Electricity 8.4V
Probe zero -offset 0μs~99.99μs Ambient Temperature -20°C~50°C
Level of electrical noise ≤10% ambient humidity 20%~90%RH
Surplus sensitivity >63dB size 23cm*17cm*5.5cm
Resolution Ratio >40dB(5P14) Weight 1.56KGS(including leather case)



SUB140 Portable Digital Ultrasonic Flaw Detector High Accuracy 110dB 0

 Standard Configuration:



No. Description Model Qty.
1 Detector(with wristlet) SUB100 1
2 Charger CD20L02QF 1
3 Connecting cable 1M 2
4 Normal probe F20mm,2.5MHz 1
5 Angle probe 13′13k2,2.5MHz 1
6 SUFD3 operating manual English Manual 1
7 PC software Support Windows XP 1
8 USB Disk 2G 1
