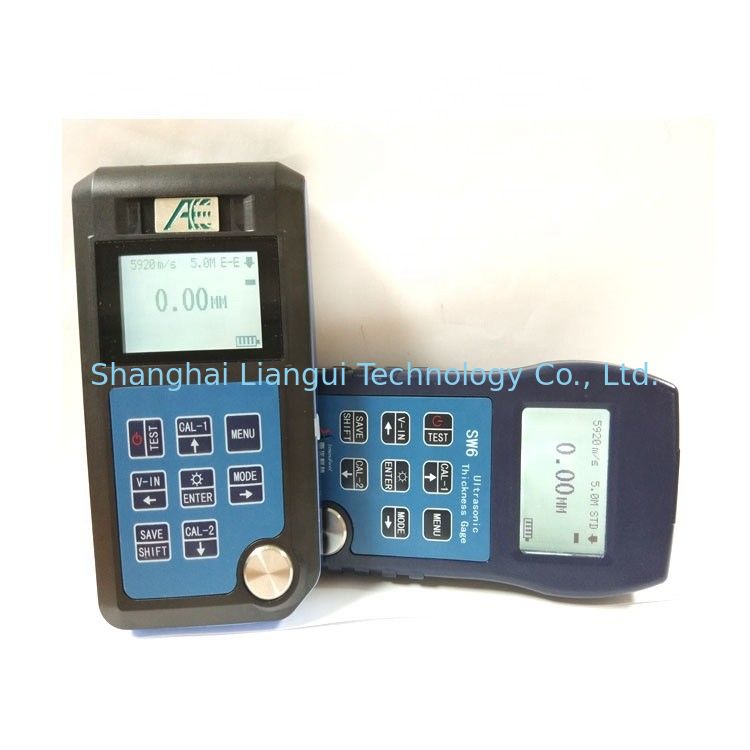

Portable Digital Through-coating adapt to a variety of probes Ultrasonic Thickness Gauge
Product introduction
Ultrasonic Thickness Gauge measuring with ultrasonic wave, is applicable for measuring the thickness of any material in which ultrasonic wave can be transmitted and reflected back from the other face.
The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.
Specifications:
Material sound speed: 509～18699m/s
Measurement accuracy: ±(0.5%H+0.05)mm
Display accuracy: 0.01mm or 0.001inch
Receiving bandwidth: 1MHz～10MHz (-3dB)
Lower limit of pipe measurement: (depending on probe configuration)
Φ15mm×1.0mm (Probe: 7.5MHz, Φ6mm)
Φ10mm×1.2mm (Probe: 7.5MHz, Φ6mm)
Measuring frequency: 2～20 times/sec (can be set)
Power source: 3VDC (two AA alkaline batteries)
Screen display: 128×64 dot matrix LCD
Working hours: 280 hours (automatic mode) 100 hours (backlight on)
Applicable temperature: -10℃～50℃ (room temperature measurement environment)
-10℃～300℃(High temperature measurement environment)
Working humidity: 20%～90%RH
Instrument size: 136(L) mm×72(W) mm×20(H)mm
Instrument weight: 176g (including battery)
Built-in test block thickness: 3mm
Parameter table
|
Model
Parameter
|
SW3 |
SW6/SW6U |
SW7/SW7U |
SW7A
|
| measuring range |
1.2～200mm
(steel, applicable to probe sections)
|
0.65～500mm
(steel, applicable to probe sections)
|
0.65～500mm
(steel, applicable to probe sections)
|
0.65～500mm
(steel, applicable to probe sections)
|
|
measuring range
(through coating mode)
|
/ |
/ |
3～25mm
(steel, applicable to probe sections)
|
3～50mm
(steel, applicable to probe sections)
|
|
Lower limit of measurement
(surface mode)
|
Φ15mm×1.0mm(7.5MHz,Φ6mm probe)
Φ10mm×1.2mm(7.5MHz,Φ6mm probe)
|
| Display accuracy |
0.1mm/0.01inch |
0.01mm/0.001inch
或0.1mm/0.01inch
|
0.01mm/0.001inch
或0.1mm/0.01inch
|
| Material sound velocity |
509～18699m/s |
| measurement accuracy |
±(0.5%H+0.05)mm (steel) |
| Receiving bandwidth |
1MHz～10MHz(-3dB) |
| Measurement frequency |
2 ~ 20 times / S (settable) |
| Power Supply |
3VDC (two AA alkaline batteries) |
| Working hours |
280 hours (backlight automatic), 100 hours (backlight on) |
| display |
128× 64 dot matrix LCD |
| Overall dimension |
136(L)×72(W)×20(H)mm |
