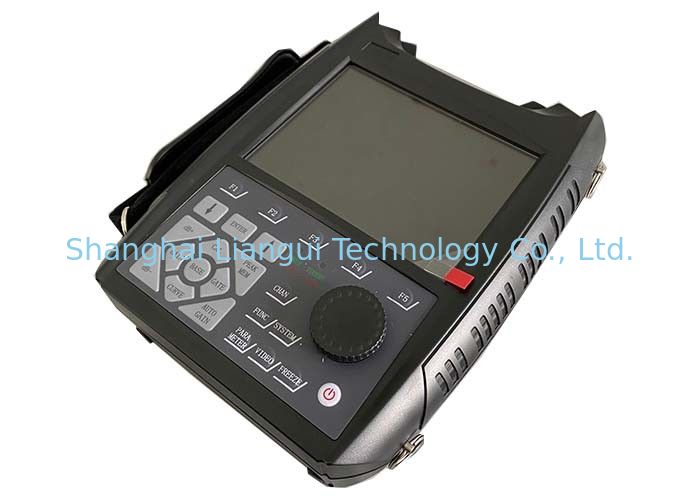

1.56kg Ultrasonic Flaw Detection Equipment Portable For Inspection
| Place of Origin | Guangdong |
|---|---|
| Brand Name | AE |
| Certification | CE、CQM |
| Model Number | SUB140 |
| Minimum Order Quantity | 1Piece |
| Price | 2500 USD |
| Packaging Details | Carton-box |
| Delivery Time | 10 days |
| Payment Terms | T/T |
| Supply Ability | 30 Piece/pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | SUB140 Ultrasonic Flaw Detector | Size | 230*170*55(mm) |
|---|---|---|---|
| Weight | 1.56kg | Display | 5.7 Inch TFT Color Screen |
| Application | Used In Power Engineering, Automatic Machinery And Equipment, Etc. | Working Frequency | 0.2MHz~15MHz |
| Testing Scope | 0~25000mm | Sound Velocity | 400m/s~20000m/s |
| High Light | 1.56kg ultrasonic flaw detection equipment,1.56kg ultrasonic ndt equipment,15MHz ultrasonic flaw detection equipment |
||
Product Description
SUB140 ultrasonic flaw detector is portable and can be used for inspection of various industries
- Product description
Features:
Ergonomically optimized design
Built-in domestic and foreign industry standards
HD display
Video function, mass storage of data
Low power design, reliable performance
| Key technical indicators | |||
| Item | Indicator | Item | Indicator |
| Testing scope | 0~25000mm | linear inhibition | 0~80%(digital suppression) |
| Working frequency | 0.2MHz~15MHz | Vertical linear error | ≤3% |
| Sound velocity | 400m/s~20000m/s | Horizontal linear error | ≤0.1% |
| Gain Coverage | 0dB~110dB | Dynamic Scope | ≥32dB |
| Sampling rate | 100MHz | Battery | 6*3.7V(lithium battery) |
| Display delay | -20μs~+3400μs | Electricity | 8.4V |
| Probe zero -offset | 0μs~99.99μs | Ambient Temperature | -20°C~50°C |
| Level of electrical noise | ≤10% | ambient humidity | 20%~90%RH |
| Surplus sensitivity | >62dB | size | 23cm*17cm*5.5cm |
| Resolution Ratio | >40dB(5P14) | Weight | 1.56KGS(including leather case) |
Standard Configuration:
| No. | Description | Model | Qty. |
| 1 | Detector(with wristlet) | SUB140 | 1 |
| 2 | Charger | CD20L02QF | 1 |
| 3 | Connecting cable | 1M | 2 |
| 4 | Normal probe | F20mm,2.5MHz | 1 |
| 5 | Angle probe | 13′13k2,2.5MHz | 1 |
| 6 | SUFD3 operating manual | English Manual | 1 |
| 7 | PC software | Support Windows XP | 1 |
| 8 | USB Disk | 2G | 1 |
- Company information:
Shanghai Liangui Technology Co., Ltd. is committed to promoting the prosperity and development of the world through technology, focusing on Intelligent Equipment & Automation Solutions to to help enterprises to improve production process and minimize the cost.
We are an intelligent equipment & automation solution integration service provider. Our company has a professional foreign trade sales team and an experienced technical support team, the principles of our team work is customer first and fast solution. Our business scope includes NDT Testing Equipment, Acoustic Emission Testing Instruments, Industrial Robot, Mechanical and Electrical Equipment etc.
Our NDT testing division is specialized in the R & D, production, sales and technical application services of Acoustic Emission Testing Instruments, Ultrasonic Flaw Detector, Ultrasonic Thickness Gauge and other Testing Instruments. Our R&D team has the ability to develop Sensors, Electronic Measurement Software and Hardware, we can also customize Non-standard Automated and Robotic Inspection Equipment for customers. Our products mainly used in Industrial Field (Aerospace, Railway, Automotive, Oil & Gas, Manufacturing, Process Industry ) and Power Generation (Renewable, Nuclear, New Reactors, Advanced Reactors, Research Reactors, Gas Combined, Coal, Cogeneration).
Our objective is to always help our clients meet their high safety standards, proposing efficient inspection solutions based on global services which reduce costs and increase process efficiency, make industrial facilities and power generation to operate safely, efficiently and excellently. Our major products AE system and instruments have been sold to China, USA, UK, Brazil, Indonesia and so on, which win the trust and support of customers from all over the world with an excellent reputation.
- Certifications
- FAQ
Q1: What is the price term?
A1: FOB Shanghai /Guangzhou/ Shenzhen
Q2: What are your payment terms?
A2: T/T Bank Transfer, Alibaba Trade Assurance and so on. Normally 50% deposit with PO, 50% balance before shipment.
Q3: How about your specific warranty service?
A3: All our products are provided with a one-year warranty period, after-sales calls are on duty 24 hours a day, and immediate response during work
Q4: Are you a trading company or a factory ?
A4: We are a group company with 5 factories in Shanghai, Jiangsu and Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are an intelligent equipment & automation solution integration service provider.
Q5: Are you checking all your goods before delivery?
A5: Yes,every component of the instruments must be checked strictly before they leave the factory.
If you have any other questions please feel free to contact us.
- Our services
Pre-Sales Service:
* Inquiry and consulting support.
After-Sales Service:
* Training how to install the machine, training how to use and maintain the machine.
Technical Support Services:
We improve customer satisfaction for every customer at each stage of the project life cycle. Once installation is completed, our Technical Support Services will ensure that your system up-time is maximized and your costs are minimized, allowing for the quickest return on your investment. Liangui Support Services offers:
- Technical documentation & teaching videos
- Highly skilled technicians diagnose problems remotely
- Online assistance to optimize and upgrade your system program
- Maintain operational success with on-time parts supply
- Provide free training to empower your employees with related skill
- Provide on-site installation and commissioning services if you nee
