64G Acoustic Emission System Of Internet Of Things

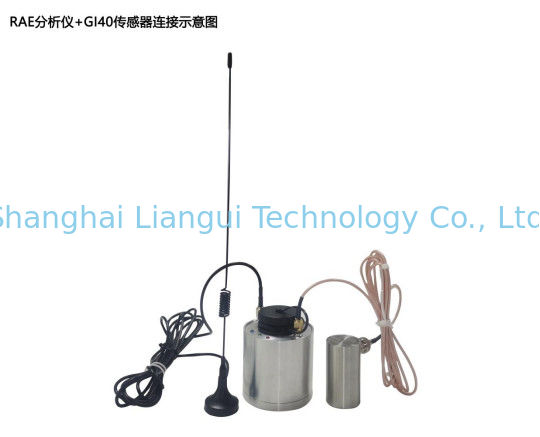

Raem1 system is an acoustic emission system of Internet of things composed of acoustic emission collector

Technical parameters

2.1 Single channel AE input, sampling rate 2m, sampling accuracy 16 bits;

2.2 Signal input bandwidth 10k-1000khz;

2.3 Dynamic range of collected signal: 70dB;

2.4 Signal trigger and time trigger data acquisition, flexible setting of system sampling cycle and acquisition time (days of cycle, acquisition times in one day and start and end time of acquisition);

2.5 The sampling length, times and interval time of time trigger can be set;

2.6 System noise ASL is better than 30dB;

2.7 Original waveform or filtered waveform data;

2.8 Acoustic emission impact parameter data, including arrival time, amplitude, ring count, energy, rise time, duration, RMS, ASL and energy;


2.9 Parameter rating data, referring to domestic and foreign acoustic emission monitoring standards, automatically generate intensity level, activity level and comprehensive intensity activity level;


2.10 for the above three kinds of data, 1-3 kinds of online output and memory storage can be set;


2.11 Built in TF Card 64g memory can store the above three kinds of data;


2.12 Optional data output ports: RS485, RS232, USB2.0, LAN;


2.13 Battery power supply; External power supply, DC 12V;


2.14 Working environment temperature: - 20 ℃ - + 50 ℃.


2.15 The protection grade of the collector is IP65;


2.16 Overall dimension of cylinder φ 50mm, height 50mm-120mm, depending on the content of the built-in module. For example, all sensor battery communication modules are built-in, and the height is about 120mm.


2.17 The module has its own magnetism and can be adsorbed on the surface of the measured object.

Company Introduction:

Shanghai Liangui Technology Co., Ltd. is committed to promoting the prosperity and development of the world through technology, focusing on Intelligent Equipment & Automation Solutions to to help enterprises to improve production process and minimize the cost.

We are an intelligent equipment & automation solution integration service provider. Our company has a professional foreign trade sales team and an experienced technical support team, the principles of our team work is customer first and fast solution. Our business scope includes NDT Testing Equipment, Acoustic Emission Testing Instruments, Industrial Robot, Mechanical and Electrical Equipment etc.

Our NDT testing division is specialized in the R & D, production, sales and technical application services of Acoustic Emission Testing Instruments, Ultrasonic Flaw Detector, Ultrasonic Thickness Gauge and other Testing Instruments. Our R&D team has the ability to develop Sensors, Electronic Measurement Software and Hardware, we can also customize Non-standard Automated and Robotic Inspection Equipment for customers. Our products mainly used in Industrial Field (Aerospace, Railway, Automotive, Oil & Gas, Manufacturing, Process Industry ) and Power Generation (Renewable, Nuclear, New Reactors, Advanced Reactors, Research Reactors, Gas Combined, Coal, Cogeneration).

Our objective is to always help our clients meet their high safety standards, proposing efficient inspection solutions based on global services which reduce costs and increase process efficiency, make industrial facilities and power generation to operate safely, efficiently and excellently. Our major products AE system and instruments have been sold to China, USA, UK, Brazil, Indonesia and so on, which win the trust and support of customers from all over the world with an excellent reputation.

Service

·Technical support and teaching videos

·Technicians diagnose problems remotely

·After-sales personnel are online 24 hours a day

·One year warranty on all parts

Our advantage

1. Considerate and thoughtful service

2. Rich experience in non-destructive testing and industrial automation

3. Strict product quality assurance

4. Super cost-effective

FAQ

Q1:What is the price term?

A:FOB Guangzhou

Q2:What are your payment terms?

A:50% deposit with PO by TT 50% balance payment before delivery.

Q3:How about your specific warranty service?

A:All our products are provided with a one-year warranty period, after-sales calls are on duty 24 hours a day, and immediate response during work

Q4:Are you a trading company or a factory ?

A:We are a technology company with our own factory, we have a professional team to develop such products and customize automation solutions.

Q5:Are you checking all your goods before delivery?

A:Yes,every component of the instruments must be checked strictly before they leave the factory.
