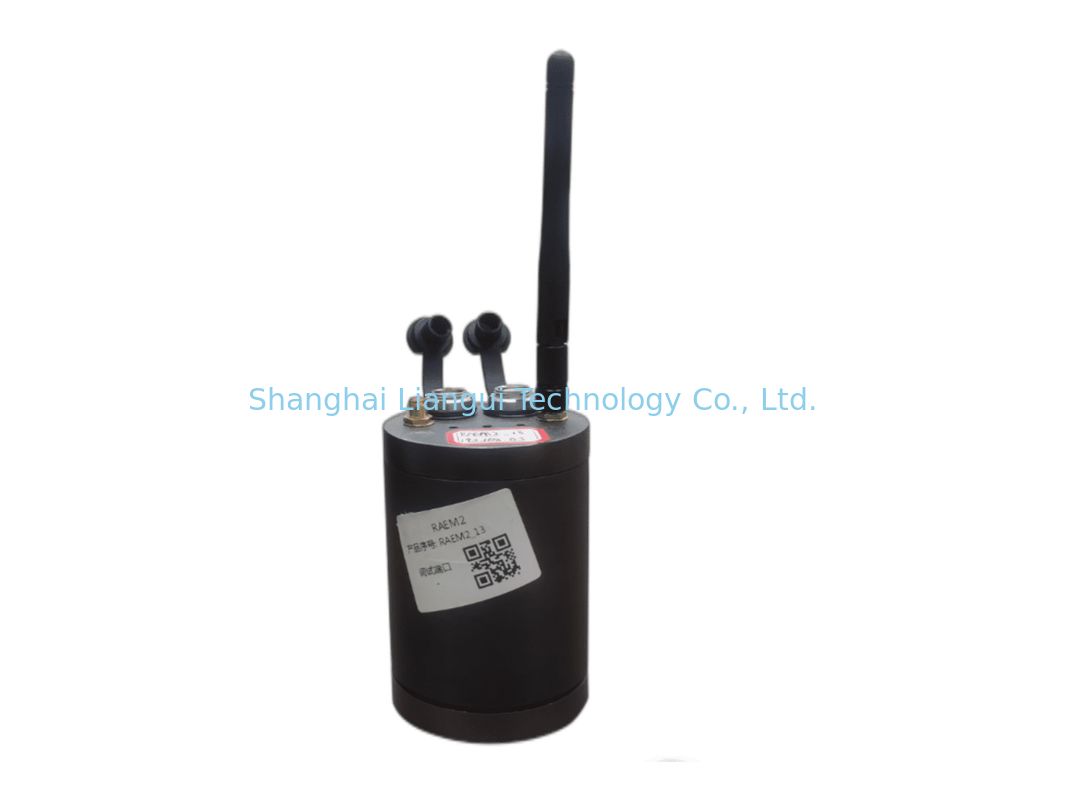

Single Channel Acoustic Emission Monitoring System 10KHz - 800KHz RAEM2

Name: Single Channel Acoustic Emission Monitoring System 10KHz - 800KHz RAEM2
Brand: Shanghai Liangui Technology Co., Ltd.
SKU: RAEM2 monitor
Price: 8,049.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	QingCheng AE
Certification:	CE
Model Number:	RAEM2 monitor

Detail Information

Place of Origin:

CHINA

Brand Name:

QingCheng AE

Certification:

Model Number:

RAEM2 monitor

Channel:

Single Channel

Trigger Method:

Time Trigger

Sampling Rate:

Max.2M/s Per Channel

Input Bandwidth:

10KHz-800KHz

Protect Grade:

IP65

Highlight:

High Light

Highlight:

Single Channel Acoustic Emission Monitoring System

800KHz Acoustic Emission Monitoring System

ARM Embedded Acoustic Emission System

Trading Information

Minimum Order Quantity:

1 pc

Price:

Negotiable

Packaging Details:

carton box

Delivery Time:

15-30 work days

Payment Terms:

T/T

Supply Ability:

100 pcs per month

Product Description

RAEM2 monitor

RAEM2 monitor was developed based on Sound Wave(Acoustic emission) technology, And Linux OS could

makes it achieve long-term stable running. combined with Qingcheng IoT cloud platform, it could meet the

different requirements of application.

Single Channel Acoustic Emission Monitoring System 10KHz - 800KHz RAEM2 0

►Sensors, signal analysis modules and batteries can be integrated or separated

►ARM embedded system, 24/7 continuous work of high reliability, suitable for long-term continuous unattended

automatic data acquisition, analysis, output

►Time - triggered signal acquisition, suitable for continuous AE signal acquisition

►A variety of optional built-in communication modules connect the RAEM2 and the server

►Diversified data output methods

Single Channel Acoustic Emission Monitoring System 10KHz - 800KHz RAEM2 4

►Data can be uploaded to the specific Cloud Server as required by the customer and can also be uploaded to

Qingcheng Cloud platform or Ali Cloud platformfor display and analysis. It can also be sent directly to SWAE

software for real-time analysis and processing

►RAEM2 can be connected to the monitoring system or cloud service and other data platforms to display data in

real time, and can also customize the data content such as parameter rating results to push to the mobile phone,

realizing real-time parameter criterion alarm and other real-time mobile data content reminding function.

►Bluetooth connection: The mobile APP directly connects to RAEM2 through Bluetooth to perform parameter

configuration, on-site calibration, maintenance, and data reading for RAEM2.

Technical parameters
Channel	Single channel	Sampling accuracy	16-bit
Trigger method	Time trigger	System noise	<30dB
Sampling rate	Max.2M/s per channel	Dynamic range	70dB
Protect grade	IP65	Input bandwidth	10KHz-800KHz
Analog filter	High-pass filters: 30KHz, 125KHz Low-pass filter: 80KHz, 175KHz
Digital filter	Any value within 0KHz~1000KHz can be set freely, high pass, low pass, band pass
Sensor	Built-in or built-out
Data output	Waveform, AE parameters and parameter rating
AE parameter	Amplitude, energy, RMS,ASL
SD card	64G(can be expanded up to 512G)
Comm method	4G,network port,Wi-Fi,RS485(customized with NB-IOT, Lora etc.)
Working temp.	-20℃~60℃(Wi-Fi version: 0℃~60℃)
Power supply	Battery or external power supply (DC 12V)
Size (D x H)	62mm x 50-120mm (customized)
Installation	Magnetic base, can be adsorbed on the surface of the metal object
