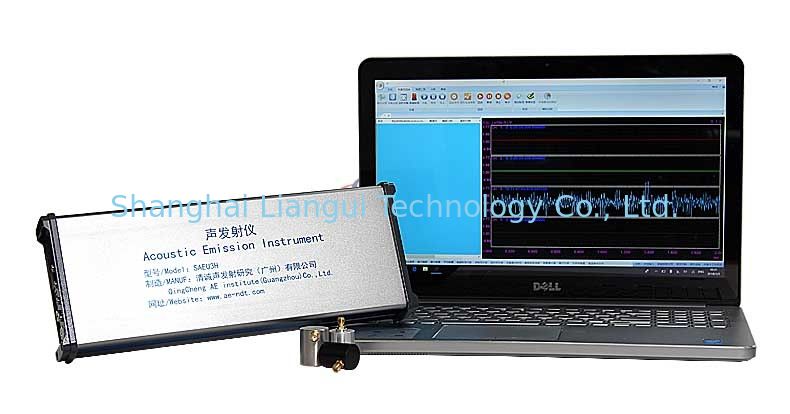

20 channel saeu3h acoustic emission system nondestructive acoustic emission tester
Product Description
Usage
SAEU3H digital acoustic emission detection system can collect and display acoustic emission waveform and parameter signals in real time, so it can fully meet various application requirements of field and laboratory (based on waveform data analysis and characteristic parameter analysis). Because it can collect and record all the original acoustic emission waveforms, users can use other signal processing and analysis tools for subsequent in-depth research, including defining more targeted acoustic emission parameters, wavelet spectrum analysis, etc.
Characteristic
• high integration and portability;
• the chassis model, the number of chassis and the number of acquisition cards can be configured according to the demand to form a multi-channel model system, and the multi-channel cascade can form a large channel acoustic emission system. Each chassis can be used as a host independently and can be expanded to more than 200 channels;
• USB3.0 interface, LAN network port, optical fiber and other connection modes can be selected for data communication between AE host and computer;
SAEU3H hardware parameters
| sampling frequency |
The maximum sampling rate of a single channel is 10m points / s, the sampling rate is continuously adjustable, and each channel can be set independently |
| Sampling accuracy |
16 bit |
| Data passing rate |
The maximum connection pass rate of a single USB3.0 interface is higher than 300MB / s, and the maximum connection pass rate of two independent USB3.0 interfaces is higher than 600MB / s |
| Continuous waveform acquisition |
10m / s sampling rate 16 bit accuracy 15 channel continuous waveform continuous acquisition |
| Number of acquisition card channels |
Each acquisition card has 4 independent channels |
| Memory capacity of acquisition card |
1GB per acquisition card |
| Acquisition chassis |
20 channel and 48 channel chassis |
| Channel expansion |
Multiple chassis can be cascaded to form a 200 channel acoustic emission system, and each chassis can also be used as an independent host |
| Acoustic emission signal processing |
Each acquisition card hardware has AE feature parameter real-time extraction function, and the channel can be set independently |
| Waveform sampling length |
The maximum single waveform sampling length can reach 128K sampling points per channel at the same time, and the channel can be set independently |
|
Waveform
pre
acquisition function
|
The pre acquisition length can reach 128K sampling points before triggering, and the channel can be set independently |
| Response frequency |
1khz-2.5mhz (- 3dB bandwidth) |
| Analog filter |
Three high pass filters (20kHz, 100kHz and 400kHz) and three low pass filters (100kHz, 400kHz and 1200khz) can be independently set one channel by one by selecting various combinations through software |
| Host noise |
＜ 15.7db (no load) |
| dynamic range |
84.3dB |
| Chassis size |
4-channel chassis: 320mm × 125mm × 50mm； (long) × wide × High)
20 channel chassis: 308mm × 225mm × 133mm； (long) × wide × High)
48 channel chassis: 308mm × 368mm × 133mm； (long) × wide × High)
|
| working temperature |
10℃～﹢45℃ |
Company Introduction:
Shanghai Liangui Technology Co., Ltd. is committed to promoting the prosperity and development of the world through technology, focusing on Intelligent Equipment & Automation Solutions to to help enterprises to improve production process and minimize the cost.
We are an intelligent equipment & automation solution integration service provider. Our company has a professional foreign trade sales team and an experienced technical support team, the principles of our team work is customer first and fast solution. Our business scope includes NDT Testing Equipment, Acoustic Emission Testing Instruments, Industrial Robot, Mechanical and Electrical Equipment etc.
Our NDT testing division is specialized in the R & D, production, sales and technical application services of Acoustic Emission Testing Instruments, Ultrasonic Flaw Detector, Ultrasonic Thickness Gauge and other Testing Instruments. Our R&D team has the ability to develop Sensors, Electronic Measurement Software and Hardware, we can also customize Non-standard Automated and Robotic Inspection Equipment for customers. Our products mainly used in Industrial Field (Aerospace, Railway, Automotive, Oil & Gas, Manufacturing, Process Industry ) and Power Generation (Renewable, Nuclear, New Reactors, Advanced Reactors, Research Reactors, Gas Combined, Coal, Cogeneration).
Our objective is to always help our clients meet their high safety standards, proposing efficient inspection solutions based on global services which reduce costs and increase process efficiency, make industrial facilities and power generation to operate safely, efficiently and excellently. Our major products AE system and instruments have been sold to China, USA, UK, Brazil, Indonesia and so on, which win the trust and support of customers from all over the world with an excellent reputation.
Service
·Technical support and teaching videos
·Technicians diagnose problems remotely
·After-sales personnel are online 24 hours a day
·One year warranty on all parts
Our advantage
1. Considerate and thoughtful service
2. Rich experience in non-destructive testing and industrial automation
3. Strict product quality assurance
4. Super cost-effective
FAQ
Q1:What is the price term?
A:FOB Guangzhou
Q2:What are your payment terms?
A:50% deposit with PO by TT 50% balance payment before delivery.
Q3:How about your specific warranty service?
A:All our products are provided with a one-year warranty period, after-sales calls are on duty 24 hours a day, and immediate response during work
Q4:Are you a trading company or a factory ?
A:We are a technology company with our own factory, we have a professional team to develop such products and customize automation solutions.
Q5:Are you checking all your goods before delivery?
A:Yes,every component of the instruments must be checked strictly before they leave the factory.
