RAEM1-6 Aluminum Alloy Shell Acoustic Emission Monitoring System Multi Channel

Name: RAEM1-6 Aluminum Alloy Shell Acoustic Emission Monitoring System Multi Channel
Brand: Shanghai Liangui Technology Co., Ltd.
SKU: RAEM1-6 monitor
Price: 8,049.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	QingCheng AE
Certification:	CE
Model Number:	RAEM1-6 monitor

Detail Information

Place of Origin:

CHINA

Brand Name:

QingCheng AE

Certification:

Model Number:

RAEM1-6 monitor

Channel:

6-channel Or Multi-channel( Up To 36 Channels)

Trigger Method:

Threshold/time Trigger

Sampling Rate:

Max.2M/s Per Channel

Protect Grade:

IP65

Input Bandwidth:

10KHz-800KHz

Dynamic Range:

70dB

Highlight:

High Light

Highlight:

Aluminum Alloy Shell Acoustic Emission System

Multi Channel Acoustic Emission Testing Equipment

IP65 Acoustic Emission Monitoring System

Trading Information

Minimum Order Quantity:

Price:

Negotiable

Packaging Details:

Carton Box

Delivery Time:

10-20 work days

Payment Terms:

T/T

Supply Ability:

30 Set/Sets per Month

Product Description

RAEM1-6 monitor

RAEM1-6 monitor was developed based on Sound Wave(Acoustic emission) technology, And Linux OS could

makes it achieve long-term stable running. combined with Qingcheng IoT cloud platform, it could meet the different

requirements of application.

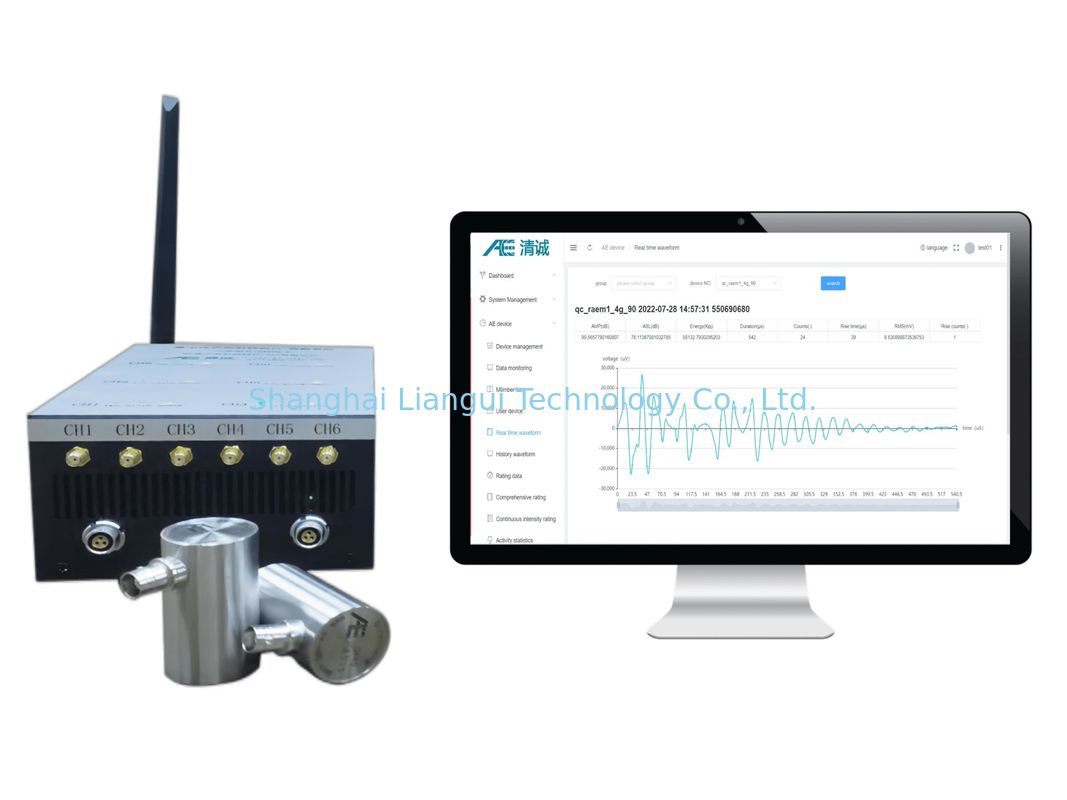

RAEM1-6 Aluminum Alloy Shell Acoustic Emission Monitoring System Multi Channel 0

►Aluminum alloy shell, which contains 2-6 channels, and can be cascaded up to more than 36 channels.

►An AE sensor is connected to one of the channels. A maximum of 6 sensors can be connected simultaneously.

►Each AE channel needs to be connected to a built-in preamp AE sensor. The number of chassis channels

can also be configured as user requirements.

►Integrating signal acquisition, signal analysis and data communication.

RAEM1-6 Aluminum Alloy Shell Acoustic Emission Monitoring System Multi Channel 4

►RAEM1-6 processes the acquired signals and transmits them to the cloud platform for users to view and

download waveform, parameters and rating data in real time.

►A variety of data communication modes (4G, Ethernet, WiFi, etc.), can also be selected according to user

equirements.

►64G storage per channel(can be expanded up to 512G)

►Multiple acquisition modes: Envelope acquisition, continuous parameter acquisition, interval acquisition,

and schedule acquisition.

►Based on Linux system, high feasibility, stability and security

►Threshold trigger or time trigger

►Wired synchronization, synchronization clock ≤10us

►Can be used as an AE detector

►Data can be uploaded to the specific Cloud Server as required by the customer and can also be uploaded

to Qingcheng Cloud platform or Ali Cloud platform for display and analysis. It can also be sent directly

to SWAE software for real-time analysis and processing.

RAEM1-6 Aluminum Alloy Shell Acoustic Emission Monitoring System Multi Channel 5

Technical parameters
Channel	6-channel or multi-channel( up to 36 channels)	Sampling accuracy	16-bit
Trigger method	Threshold/time trigger	System noise	<30dB
Sampling rate	Max.2M/s per channel	Dynamic range	70dB
Protect grade	IP65	Input bandwidth	10KHz-800KHz
Analog filter	High-pass filters: 30KHz, 125KHz Low-pass filter: 80KHz, 175KHz
Digital filter	Any value within 0KHz~1000KHz can be set freely, high pass, low pass, band pass
Sensor	Built-in or built-out, 2 built-in preamplifier sensor options:28V40dB,12V34dB,5V26dB
Data output	Waveform, AE parameters and parameter rating
AE parameter	Arrival time, amplitude, counts, energy, rise time, duration,RMS,ASL
SD card	64G(can be expanded up to 512G)
Comm method	4G,network port,Wi-Fi
Working temp.	-20℃~60℃(Wi-Fi version: 0℃~60℃)
Power supply	DC 12V	Weight	1.6Kg
Size (L x W x H)	22cm x 13cm x 8cm
Clock synch	Less than 10 us
