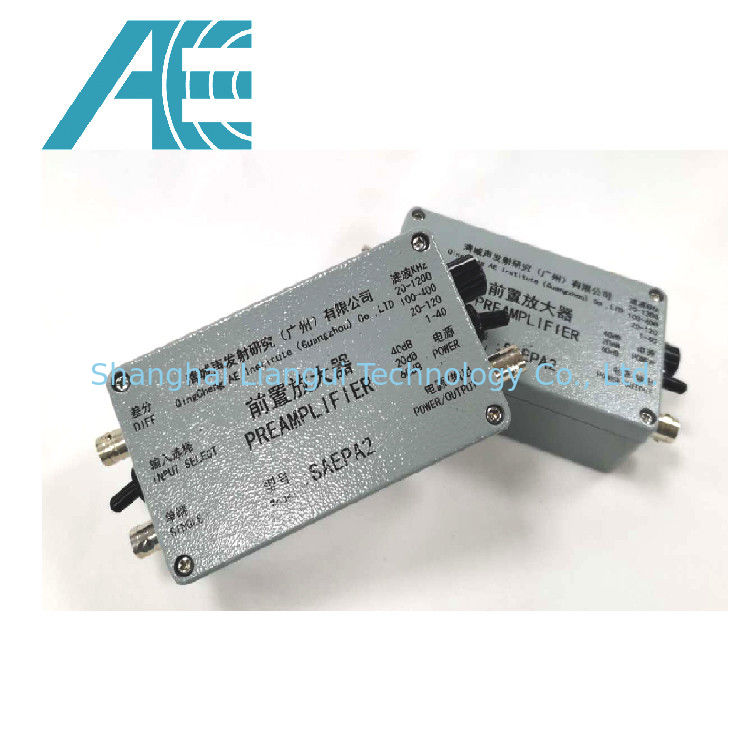

40dB Acoustic Emission Testing Equipment PAI Preamplifier
| Place of Origin | GUANGDONG |
|---|---|
| Brand Name | AE |
| Certification | CE,CQM |
| Model Number | PAI |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | 1 pcs/pp bag ,carton for outside packing |
| Delivery Time | 10work days |
| Payment Terms | T/T |
| Supply Ability | 15 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | PAI Acoustic Emission Preamplifier | Gain | 40dB |
|---|---|---|---|
| Response Frequency | 10KHz~2.0MHz | Noise | <26dB(40dB Input Of The Gain Is Short-circuited) |
| Output Range | ±10V(Vpp) | Working Voltage | 28V DC(24V-32V) |
| Rated Load | 50Ω | Protection Level | IP65 |
| High Light | 40dB Acoustic Emission Testing Equipment,AE PAI Acoustic Emission Testing Equipment,40dB PAI Preamplifier |
||
Product Description
40dB Acoustic Emission Testing Equipment PAI Preamplifier
The voltage signal output by the acoustic emission sensor is sometimes as low as a few microvolts. If such a weak signal is transmitted over a long distance, the intensity will inevitably decrease. The original sensor signal needs to be amplified several times and then transmitted. The commonly used amplification factor is 40dB, and then it is transmitted to the signal acquisition unit via a high-frequency coaxial cable. The preamplifier is an analog circuit, the input is the voltage signal output by the acoustic emission sensor, and the output is the amplified analog signal.
| model | PAI |
| Gain | 40dB |
| Noise | <26dB(Input shorted) |
| Output range | ±10V(Vpp) |
| Working voltage: | 28V DC |
| Rated load | 50Ω |
| Size | 116mm*36mm*30mm(With BNC interface) |
| Protection level | IP65 |
| Shell material | Cast aluminum |
| Interface Type | BNC(Q9) |
| Response frequency | 10kHz~2.0MHz |
| Working temperature | -20℃~+60℃ |
-
Company Introduction
Shanghai Liangui Technology Co., Ltd. is committed to promoting the prosperity and development of the world through technology, focusing on Intelligent Equipment & Automation Solutions to to help enterprises to improve production process and minimize the cost.
We are an intelligent equipment & automation solution integration service provider. Our company has a professional foreign trade sales team and an experienced technical support team, the principles of our team work is customer first and fast solution. Our business scope includes NDT Testing Equipment, Acoustic Emission Testing Instruments, Industrial Robot, Mechanical and Electrical Equipment etc.
Our NDT testing division is specialized in the R & D, production, sales and technical application services of Acoustic Emission Testing Instruments, Ultrasonic Flaw Detector, Ultrasonic Thickness Gauge and other Testing Instruments. Our R&D team has the ability to develop Sensors, Electronic Measurement Software and Hardware, we can also customize Non-standard Automated and Robotic Inspection Equipment for customers. Our products mainly used in Industrial Field (Aerospace, Railway, Automotive, Oil & Gas, Manufacturing, Process Industry ) and Power Generation (Renewable, Nuclear, New Reactors, Advanced Reactors, Research Reactors, Gas Combined, Coal, Cogeneration).
Our objective is to always help our clients meet their high safety standards, proposing efficient inspection solutions based on global services which reduce costs and increase process efficiency, make industrial facilities and power generation to operate safely, efficiently and excellently. Our major products AE system and instruments have been sold to China, USA, UK, Brazil, Indonesia and so on, which win the trust and support of customers from all over the world with an excellent reputation.
