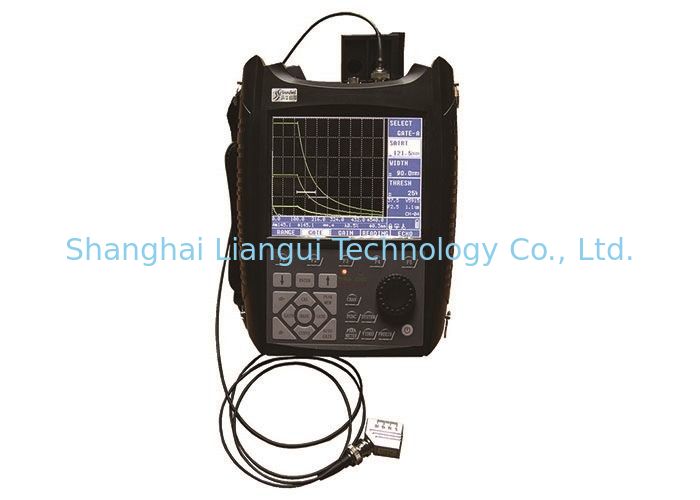

SUB100 NDT Testing Equipment Ultrasonic Fault Detector
| Place of Origin | GUANGDONG |
|---|---|
| Brand Name | AE |
| Certification | CE,CQM |
| Model Number | SUB100 |
| Minimum Order Quantity | 1 piece |
| Price | 2300 USD |
| Packaging Details | 1 pcs/plastic bag per unit,carton for outside packing |
| Delivery Time | 20 days |
| Payment Terms | T/T |
| Supply Ability | 30 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | SUB100 Ultrasonic Fault Detector | Type | Electronic Measuring Instrument |
|---|---|---|---|
| Weight | 1.56 Kg(With Leather Case) | Size | 230*170*55(mm) |
| Sampling Frequency | 100 MHz | Point Noise Level | ≤10% |
| Resolution | >40 DB(5P14) | Dynamic Range | ≥32dB |
| High Light | SUB100 NDT Testing Equipment,AE SUB100 ultrasonic fault detector,100 MHz NDT Testing Equipment |
||
Product Description
SUB100 Ultrasonic Fault Detector
- product description
Sub100 portable ultrasonic default detector series is specially designed for engineering personnel use on nondestructive testing. It can easily and accurately conduct nondestructive testing on welding defects, cracks, internal pores of the work piece and other defects.
| Model Number | SUB100 |
| Measurement Range | 0~9999mm |
| Sound speed range | 1000~9999m/s |
| Storage access number | 10 |
| Number of stored waveforms | 100 |
| Video(min) | 5min*10 |
| working frequency | 0.2~15MHz |
| Pulse intensity | fixed |
| Pulse Width | 50~1000ns |
| Gain range | 0dB~110dB |
| Display delay | -15μs ~+3400μs |
| Probe offset | 0μs ~1000μs |
| Electrical noise level | ≤10% |
| Probe damping | 50,75,150,500Ω |
| repeat frequency | Auto height, auto middle, auto height,5~1000Hz |
| Sensitivity margin | ＞62dB |
| Resolution | ＞40dB |
| Noise suppression | 0~80%(digital control) |
| Vertical linearity error | ≤3% |
| Horizontal linearity error | ≤0.1% |
| Dynamic Range | ≥32dB |
| Built-in flash memory | 1GB |
| Ambient temperature | -10℃~+50℃ |
| environment humidity | 20%~90% |
| operating hours | ≥20h |
| size | 220*175*56(mm) |
| weight | 1.3kg |
- Certifications
- Company information
Shanghai Liangui Technology Co., Ltd. is committed to promoting the prosperity and development of the world through technology, focusing on Intelligent Equipment & Automation Solutions to to help enterprises to improve production process and minimize the cost.
We are an intelligent equipment & automation solution integration service provider. Our company has a professional foreign trade sales team and an experienced technical support team, the principles of our team work is customer first and fast solution. Our business scope includes NDT Testing Equipment, Acoustic Emission Testing Instruments, Industrial Robot, Mechanical and Electrical Equipment etc.
Our NDT testing division is specialized in the R & D, production, sales and technical application services of Acoustic Emission Testing Instruments, Ultrasonic Flaw Detector, Ultrasonic Thickness Gauge and other Testing Instruments. Our R&D team has the ability to develop Sensors, Electronic Measurement Software and Hardware, we can also customize Non-standard Automated and Robotic Inspection Equipment for customers. Our products mainly used in Industrial Field (Aerospace, Railway, Automotive, Oil & Gas, Manufacturing, Process Industry ) and Power Generation (Renewable, Nuclear, New Reactors, Advanced Reactors, Research Reactors, Gas Combined, Coal, Cogeneration).
Our objective is to always help our clients meet their high safety standards, proposing efficient inspection solutions based on global services which reduce costs and increase process efficiency, make industrial facilities and power generation to operate safely, efficiently and excellently. Our major products AE system and instruments have been sold to China, USA, UK, Brazil, Indonesia and so on, which win the trust and support of customers from all over the world with an excellent reputation.
- FAQ
Q: What is your terms of payment ?
A: Payment 100% before shipment.
If you have another question, please feel free to contact us.
Q: What is the price term?
A: FOB Shanghai.
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
