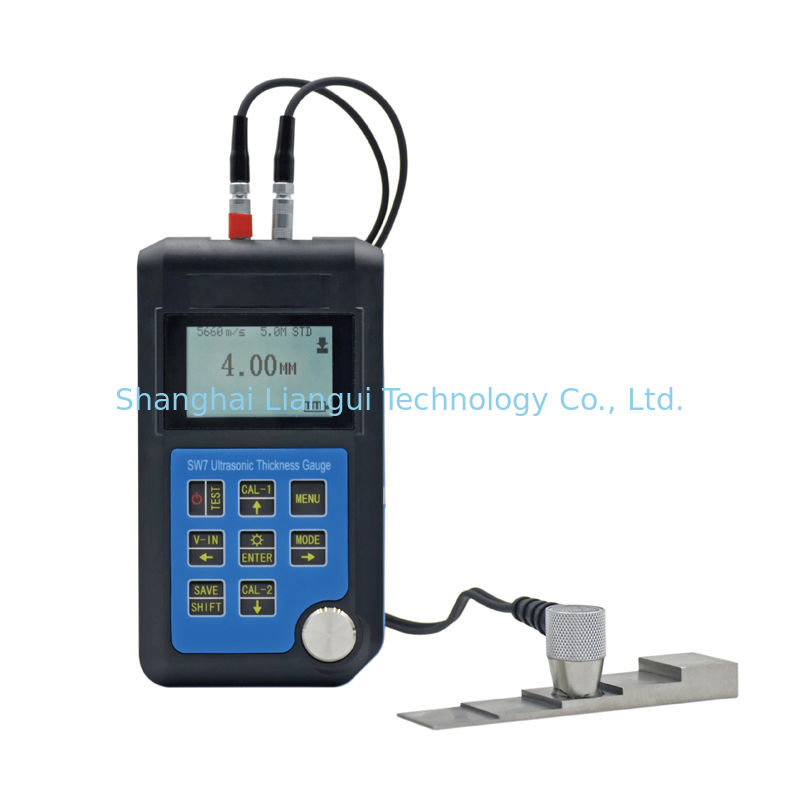

Digital Ultrasonic Thickness Gauge E-E (Echo-Echo) Through Paint And Coatings SW7
| Place of Origin | China |
|---|---|
| Brand Name | QingCheng Ltd. |
| Certification | CE、CQM |
| Model Number | SW7 |
| Minimum Order Quantity | 1 |
| Price | 200 USD |
| Packaging Details | Carton Box |
| Delivery Time | 18-30 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measurement Range | 0.65mm~500mm (steel) | Display Accuracy | 0.01mm/0.001inch |
|---|---|---|---|
| Working Temperature | -10~+50°C | Material Sound Velocity | 509m/s~18699m/s Settable |
| Receive Bandwidth | 1MHz~10MHz(-3dB) | Measurement Accuracy | ±(0.5%H+0.05) Mm |
| Measurement Frequency | 2~20 Times/s Settable | Power Supply | 3V DC (2 AA Alkaline Batteries) |
| High Light | Echo-Echo Ultrasonic Thickness Gauge,Digital Ultrasonic Thickness Gauge,Coatings Ultrasonic Thickness Tester |
||
Product Description
Product Description
SW7 is a high-precision ultrasonic thickness gauge independently developed by Qingcheng Ltd., which is suitable for various materials through-coating high-precision measurement needs.The thickness of the workpiece can be measured quickly and accurately only by placing the probe on the contact surface on one side of the workpiece. And it is convenient to measure the workpiece coated with paint or anticorrosive material.
Main Features:
l SW7 can be used to measure thickness through the coating (0.1-3mm) on the workpiece surface, it is suitable for thickness measurement of almost all materials, such as metal, glass, plastic, rubber, and other materials.
l Probe self-adaptive functions: automatic matching different manufacturers of various types of probes, including identifying the sensitivity and frequency of probe, automatic adjusting the thickness gauge parameter Settings, to reach the best measuring effect.
l Power-on self-check function, which help to improve the measurement accuracy.
l Probe zero automatic calibration, sound velocity calibration function.
l USB data transmission interface, easy implementation and computer data connected to export data (data format. TXT).
l Metric/inch optional: display unit can choose between mm and inch.
Thickness measuring range:
l 0.65~500mm (Steel)
l 0.3~200mm (Glass)
l 3~50mm (Cast iron)
l 4~80mm (High temperature)
l 3mm~50mm (Echo-Echo mode)
Note: The thickness measurement range for different materials depends on the performance of the probe as well as the material surface condition and the ambient temperature measured.
Optional probe:
| Probe type | Specification | Measuring range | Diameter | Frequency | Temperature |
|
Standard type (suitable for coating workpiece) |
5M,D10 | 0.7~400mm 3.0~50mm (coating) |
10mm | 5MHz | -10~+50℃ |
| Small-diameter type | 5M,D6 | 0.70~60mm | 6mm | 5MHz | -10~+50℃ |
| Standard type | 2.5M,D12 | 3.0~500mm | 12mm | 2.5MHz | -10~+50℃ |
| Micro-diameter type | 7.5M,D6 | 0.65~25mm | 6mm | 7.5MHz | -10~+50℃ |
| High precision type | 7.5M,D10 | 0.65~250mm | 10mm | 7.5MHz | -10~+50℃ |
| High temperature type | ZW5P | 4.0~80mm | 12mm | 5MHz | -10~+300℃ |
| Special cast iron type | 2M,D22 | 3.0~50mm(cast iron) | 22mm | 2MHz | -10~+50℃ |
Note: To make sure the probe working properly it needs to use couplant to isolate the air between the probe surface and the measured workpiece surface.
Applicable condition
l The surface of the measured workpiece should be clean. If it is rough or seriously corroded, coupling agent should be used on the surface, or treat the surface of the measured workpiece with rust remover, wire brush or sandpaper.
l If the workpiece surface is coated with paint or anticorrosive materials, it can be measured directly without treatment.
l Ensure that the surrounding environment has no strong vibration, no strong magnetic field, no corrosive media, and serious dust.
l The probe should be selected according to the thickness and shape of the measured workpiece.
l When measuring at ambient temperature, the surface of the measured object should not exceed 50°C, otherwise it will damage the probe. If the probe is worn, the measurement value will be unstable. At this time, the probe should be replaced.
