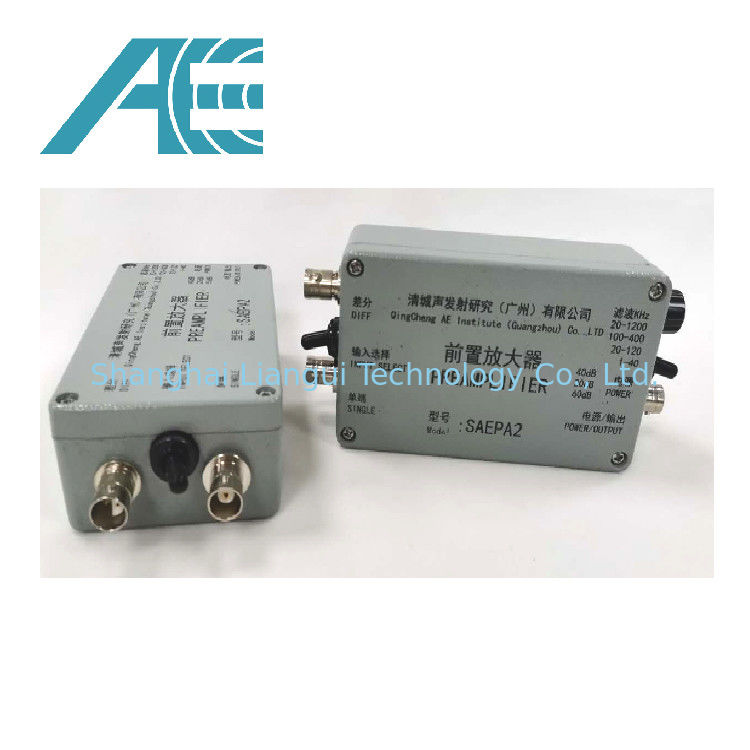

PAS Acoustic Emission Testing Equipment Preamplifier With Selectable Gain 20/40/60 DB
| Place of Origin | GUANGDONG |
|---|---|
| Brand Name | AE |
| Certification | CE,CQM |
| Model Number | PAS |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Selling Units: Single item Single package size: 21.5X18X10.5 cm Single gross weight: 0.500 kg Outside packing Size(L*W*Hmm): 215*180*105 G.W.(KG): 0.50kg Packing way: 1pcs/pp bag ,carton for outside packing |
| Delivery Time | 15 work days |
| Payment Terms | T/T |
| Supply Ability | 30 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | PAS Acoustic Emission Preamplifier | Type | Professional Amplifier |
|---|---|---|---|
| Response Frequency | 1.3 KHz~1.2 MHz | Noise | <24 DB(40 DB Input Of The Gain Is Short-circuited) |
| Four Gear Built-in Filters | 20kHz-1200kHz; 100kHz-400kHz; 20kHz-120kHz; 1kHz-40kHz | Maximum Current | 100 MA |
| Quiescent Current | 31 MA | ||
| High Light | Acoustic Emission Testing Equipment 20 DB,PAS ndt testing equipment,PAS Acoustic Emission Testing Equipment 60 DB |
||
Product Description
PAS Acoustic Emission Preamplifier with selectable gain 20/40/60 dB
- product description
PAS AE preamplifier series are wideband -universal models, which can match with most common sensor models and AE acquisition cards for each factory; Three gain gears to choose: 20/40/60dB; Two input ways: sigle-ended/difference; Built-in filter, relevant frequency are divided to four gears ; AST (Automatic sensor test) function, can send out test signal resource to the sensors ( under the condition of phantom power supply).
| model | PAS |
| Gain | 20/40/60dB |
| Noise | <26dB(Input shorted) |
| Output range | ±10V(Vpp) |
| Working voltage | 28V DC |
| Rated load | 50Ω |
| Size | 110mm*65mm*37mm(With BNC interface) |
| Response frequency | 1.0kHz~1.5MHz |
| Working temperature | -20℃~+60℃ |
| Interface Type | 2 BNC (Q9) interfaces, differential BNC interface, power interface |
| Built-in filter | 4 gears optional(20kHz-1200kHz,100kHz-400kHz,20kHz-120kHz,1kHz-40kHz) |
- Company Profile
Shanghai Liangui Technology Co., Ltd. is committed to promoting the prosperity and development of the world through technology, focusing on Intelligent Equipment & Automation Solutions to to help enterprises to improve production process and minimize the cost.
We are an intelligent equipment & automation solution integration service provider. Our company has a professional foreign trade sales team and an experienced technical support team, the principles of our team work is customer first and fast solution. Our business scope includes NDT Testing Equipment, Acoustic Emission Testing Instruments, Industrial Robot, Mechanical and Electrical Equipment etc.
Our NDT testing division is specialized in the R & D, production, sales and technical application services of Acoustic Emission Testing Instruments, Ultrasonic Flaw Detector, Ultrasonic Thickness Gauge and other Testing Instruments. Our R&D team has the ability to develop Sensors, Electronic Measurement Software and Hardware, we can also customize Non-standard Automated and Robotic Inspection Equipment for customers. Our products mainly used in Industrial Field (Aerospace, Railway, Automotive, Oil & Gas, Manufacturing, Process Industry ) and Power Generation (Renewable, Nuclear, New Reactors, Advanced Reactors, Research Reactors, Gas Combined, Coal, Cogeneration).
Our objective is to always help our clients meet their high safety standards, proposing efficient inspection solutions based on global services which reduce costs and increase process efficiency, make industrial facilities and power generation to operate safely, efficiently and excellently. Our major products AE system and instruments have been sold to China, USA, UK, Brazil, Indonesia and so on, which win the trust and support of customers from all over the world with an excellent reputation.
- FAQ
Q:What is the price term?
A:FOB Shanghai.
Q:What’s the warranty time?
A:12 months after shipment date.
Q:Are you a trading company or factory?
A: We are a group company with 5 factories in Shanghai, Jiangsu and Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are an intelligent equipment & automation solution integration service provider.
Q:How to deal with the faulty part if exceeds the warranty time?
A:Customer can return the faulty parts for our testing and maintaining, all the logistic should be at customer’s cost.
