Low Frequency Transformer EI 133.2 Silicon Steel Sheet Automatic Chip Inserting Machine

Low Frequency Transformer EI 133.2 Silicon Steel Sheet Automatic Chip Inserting Machine

Product Description

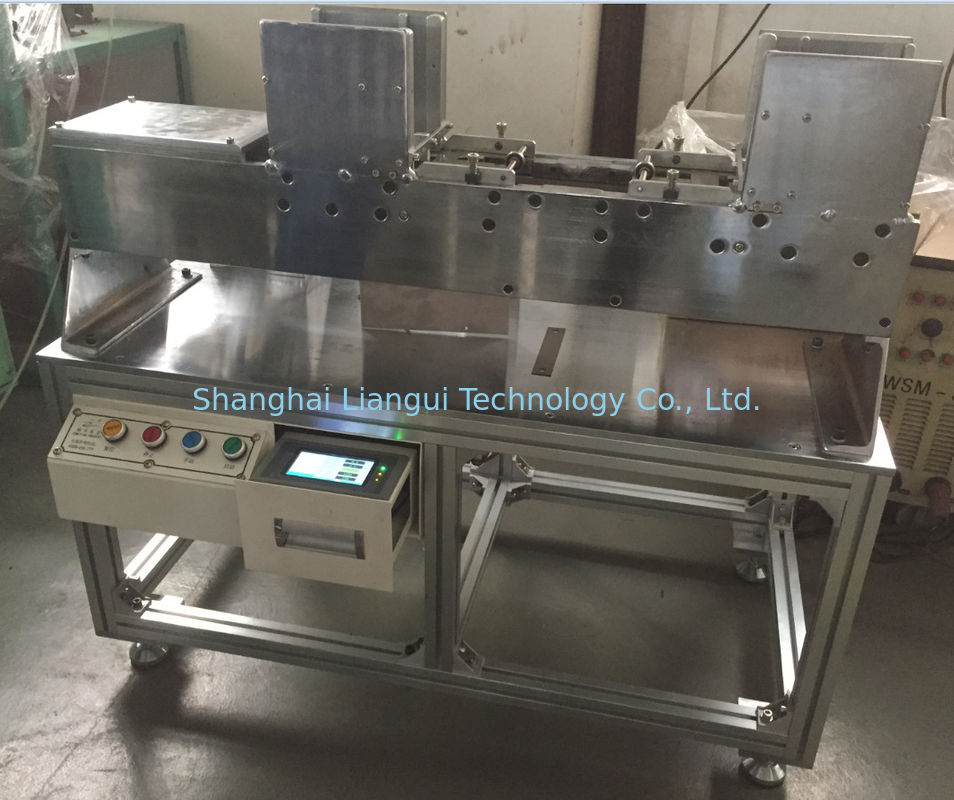

"Transformer Automatic Chip Inserting Machine" is developed by our company on the basis of "hand-crank chip inserting machine" (patent number: ZL201430518221.9). An EI inserting machine for low-frequency transformers is a specialized piece of equipment used in the manufacturing process of transformers. The "EI" refers to the shape of the laminated silicon steel core used in the construction of transformers. It consists of two separate "E" shaped laminations and a central "I" shaped lamination, which are stacked together to form the core.

The purpose of the EI inserting machine is to automate the assembly of the transformer core by inserting the laminations into the appropriate positions. This machine is designed to handle the specific size and shape of the EI laminations used in low-frequency transformers.

The machine typically consists of a feeding mechanism that supplies the EI laminations, a positioning system that aligns the laminations correctly, and a pressing mechanism that applies pressure to secure the laminations together. The machine's automation allows for precise and efficient assembly, reducing human error and increasing productivity in the transformer manufacturing process.

Overall, the EI inserting machine for low-frequency transformers plays a crucial role in streamlining the production of transformers by automating the core assembly process, ensuring accurate and consistent results.

Product Parameter:

Product Features

① Simple, efficient and easy to use.

It can reduce the need for manual labor and increasing production efficiency, saves manpower and reduces the labor intensity of the manual rocker arm of the old-fashioned shaker, and novice can be on the job in just 10 minutes of training.

② The structural part is made of high-quality steel, which has less wear, less failure, long service life, and easy replacement of parts. It is an ideal choice for transformer manufacturers.

③ Using high-performance PLC control, the touch screen control interface is easy to operate.

④ Adopt high-precision, high-torque stepping motor drive, fast speed and long life.

⑤ Card protection system, overcurrent and overload protection.

⑥ Adopt unique triangular structure and user-friendly Interface: The machine typically features a user-friendly interface that allows operators to monitor and control the insertion process easily.

Product Instructions

1 Loading, place the EI sheet corresponding to the EI sheet slot.

2 Set the insert parameters of the EI sheet according to the EI and frame size, and debug it.

3 When the debugging is OK, put the skeleton/ bobbin /wire package in the skeleton position, press the start switch (can be started by foot switch), the machine will automatically complete the inserting work, confirm that the inserting is completed, take it out, put in a new skeleton, and then repeat.
